At Devico we supply leading directional core drilling services and borehole surveying solutions. After more than 30 years delivering innovation worldwide, we continue to be a pioneer in developing and implementing specialized and efficient solutions for the mining exploration, mining production & development, and civil construction industries.
We produce innovative solutions for directional core drilling, downhole navigation surveying, core orientation, drill rig alignment, and QA/QC data management. From our world class headquarters in Norway, and through a strong network of branch offices and distributors worldwide, Devico services and solutions are easily accessible in all key mining and civil markets around the globe.
National HUB LLC proudly joined Devico agent sales network and partners in 2017 and became official agent for Devico borehole surveying instruments.
Magnetic single/multishot
High precision instrument with superior strength

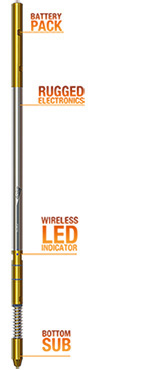

DeviShot is a leading survey instrument for measuring the path of boreholes, in non-magnetic environments. The user friendly DeviShot is designed with the drilling environment in mind and comes assembled and ready for use straight from the box. The integrated, robust running gear enables operation at great depths, while our innovative Brilliant Blue Technology (BBT) activations system ensures quick set up, data transfer and download. With simple to use android software, single and multi-shot function the DeviShot is widely accepted as the tool of choice for a range of mining and civil applications.
Ultra-rugged continuous instrument for in rod surveying

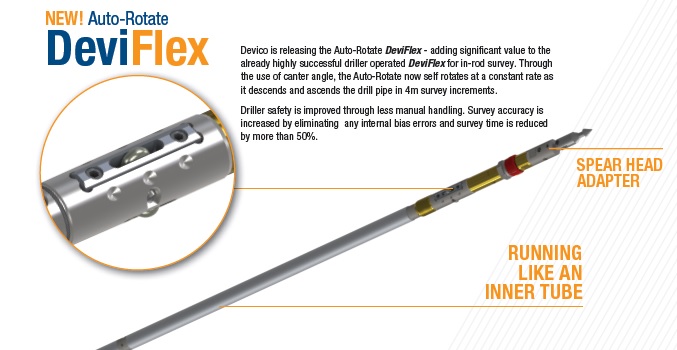

Incorporating ever-reliable strain gauge technology, the DeviFlexRapid enables low risk, precise, continuous surveying with total confidence.
Featuring both continuous and multi-shot surveying capability, auto-rotate centralizers, quick assembly, and user friendly, intuitive operational and processing software, the DeviFlexRapid is known as one of the most dependable and repeatable non-magnetic tools on the market.
Built to withstand the rigours of the drilling environment, DeviFlexRapid is well reputed as a leading driller operated survey instrument.
Applications

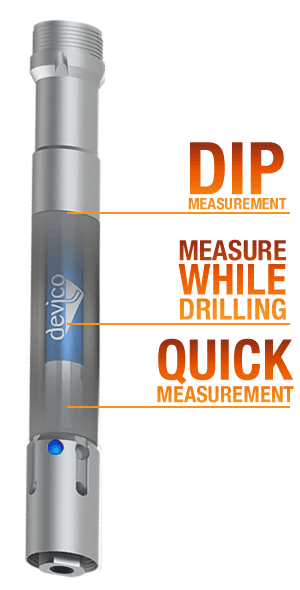

The DeviCore BBT represents an integration of the patent pending Brilliant Blue™ technology and other proprietary Devico technologies. The DeviCore BBT employs the same Devidip system probe technology which has proven to be an industry leader in reliability for more than 20 years as a part of the Devidrill, combining electronic core orientation integration with running gear.
The kit includes two DeviCore BBT probes and a core barrel extension and is ready to be assembled on the drilling equipment on site.
The probes also has a valve system in front securing that pump-in time is not affected.
DeviCore BBT comes equipped with the IP67 rated Nomad PDA system and DeviSoft.Mobile software.
The operation follows a clear step-by-step procedure, and one probe can be started and downloaded while the other is down in the hole.
DeviCore BBT uses three high-accuracy accelerometers, it measures inclination, orientation, gravity vector, temperature and battery status, and offers quality control on the results.
Communication between DeviCore BBT and the PDA is done wirelessly via Brilliant Blue Technology.
USING DEVICO’S CCO SYSTEM OFFERS THE FOLLOWING ADVANTAGES:
Surface & underground alignment system

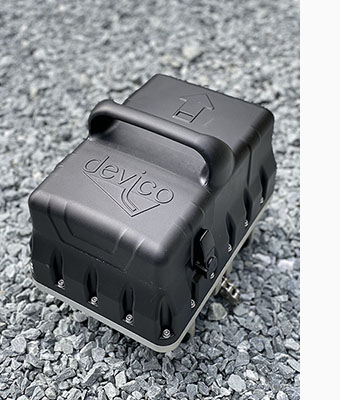

The DeviAligner is an ultra-portable, north seeking gyro alignment system for recording precise azimuth, inclination and roll angle measurements, on both surface and underground drill sites.
Designed specifically for automating the drill rig alignment process within the mining and civil sectors, the DeviAligner also delivers quick and precise quality assurance for any collar pick up, survey instrument reference and re-alignment requirements.
The system features an easy to operate Android app, wireless communication, the ability to import drill plans directly to the handheld and enables real time readings in True North or Mine Grid.
Setting the standard for precision and settling time, the DeviAligner significantly increases accuracy and efficiency, whilst reducing rig downtime and associated costs.
CONTINUOUS HIGH SPEED NON-MAGNETIC SURVEY

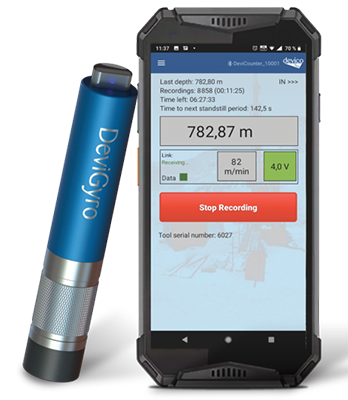

The DeviGyro is an advanced, miniature rate gyro survey instrument supporting high-speed, all-angle, continuous, and multishot borehole surveying.
Incorporating cutting-edge gyroscope technology and a proprietary navigational algorithm the DeviGyro precisely detects and quantifies any deviation the instrument is subjected to as it traverses the drill hole. Providing highly accurate, repeatable data at any angle.
Designed for versatility it is provided through a range of purposebuilt running gear configurations making it the ideal solution for a large variety of mining and civil drilling applications.
With uncomplicated operation and an attractive price point, DeviGyro is resetting the standard for borehole survey instruments.
Applications
Compact overshot survey solution for the diamond core drilling application.

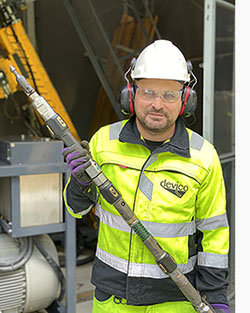

The DeviGyro Overshot Xpress offers continuous gyro surveying up to 100m/min whilst retrieving the core tube, minimizing the impact on drilling productivity and maximizing bit-on-face time. The compact 1.2m design improves operator handling, making it a safer option compared to conventional overshot survey systems. Well suited for both surface and underground applications.
Ultra-versatile survey solution for most types of in-rod applications
The DeviGyro RG40 Standard comes with adjustable centralizers which cover a wide range of rod diameters and profiles, while still supporting the high-speed continuous survey operation the DeviGyro has become known for. Making it the go-to solution for drill programs utilizing a range of drilling applications.
.JPG)
Multipurpose survey solution for all slim drill hole applications.

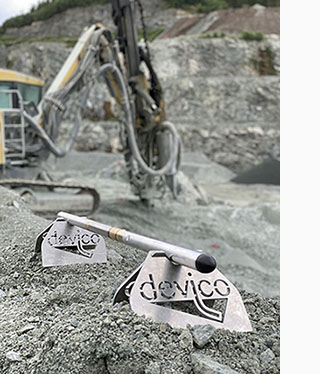

The DeviGyro RG30 Slimline survey assembly offers a slim and lightweight, yet robust design. The ideal solution for challenging surveying applications such as production, and injection drill holes.
Smart wireless wire counter

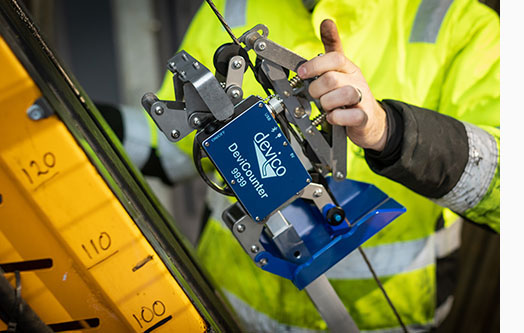

The DeviCounter is a high precision, digital wireline counter, for preciously measuring interval depth, time and line speed of a drill rigs wireline when surveying. Providing seamless data integration with leading Devico survey instrumentation. Knowing the exact depth is vital for your surveying accuracy and safety. Incorporating a high precision optical depth encoder, a smart, long range wireless communication system, and a practical design for ease of use and quick maintenance, the DeviCounter securely manages this important aspect for you.
Applications
TRANSPARENCY. SECURITY. SIMPLICITY. That’s survey data managed through DeviCloud.
DeviCloud is the complete survey data management system, connecting drillers, geologists, and engineers through a fast, secure, and uncomplicated cloud-based platform.
The onsite processing, transfer and management of borehole survey data is more streamlined than ever with DeviCloud. Providing each defined (and unlimited) user group with immediate access to surveys, as soon as they are uploaded directly from the drill site. Supporting two-way communication between site and office, DeviCloud also makes it possible to share and sync drill plans directly to the handheld device on site, reducing the risk of miscommunication.
DeviCloud enhances the data transparency and quality of Devico’s leading instrument range. Offering fast processing, instant QA/QC data analysis, comprehensive plotting, and inspection parameters, along with advanced reporting functionalities.
Applications
